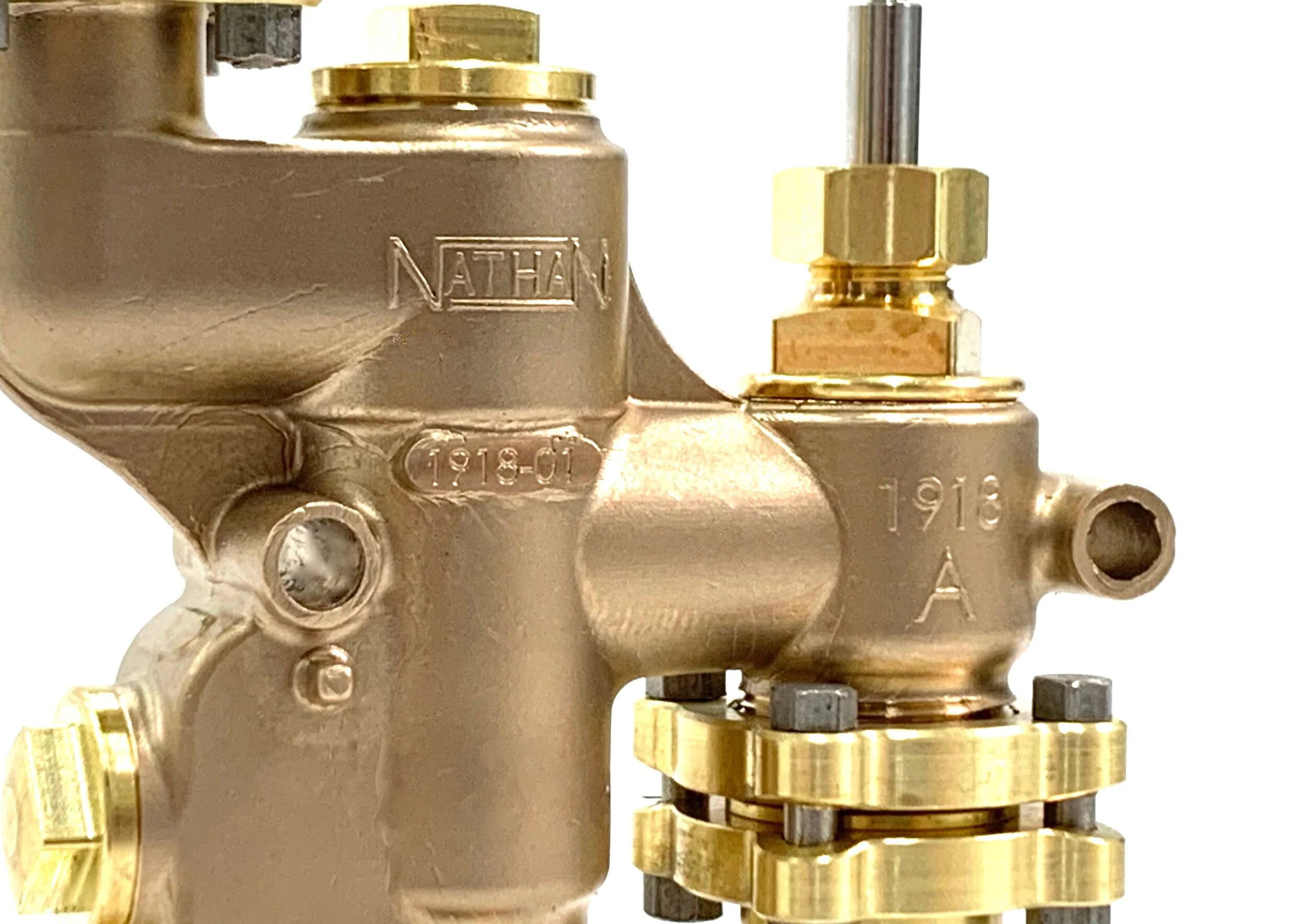

The 1918A injectors were used on a wide variety of locomotives from 0-6-0’s to heavy Pacifics.

Faithfully reproduced in 1.6” scale, these model steam injectors are up to the task of reliably maintaining your boiler’s water level. The nozzle design is the same as the reputable EE Standard Injector, but the nozzles have been modified to fit inside the scale 1918A body.

The overflow is reversible to either size of the injector body for installation on either the right or left-hand side of the locomotive.

Eccentric Engineer’s 1918A is the first ever model injector to include a built-in cleanable filter on both the steam and water inlets, keeping your nozzles free from debris that would otherwise clog the injector.

Specifications

• Self starting / automatically restarting

• 316 stainless steel nozzles

• 5 pints per minute (80oz/min)

• Steam inlet - 5/16” tubing

• Water delivery - 5/16” Tubing

• Water inlet - 3/8” tubing

• Overflow - 3/8” tubing

• Operating Range - 35psi - 160psi

• Individually serial numbered

• Working built-in water valve

• Built-in water and steam filters
